Cylindrical Bottles And Jars Multicolor Screen Printing Machine Configurated With Hot-Stamping System

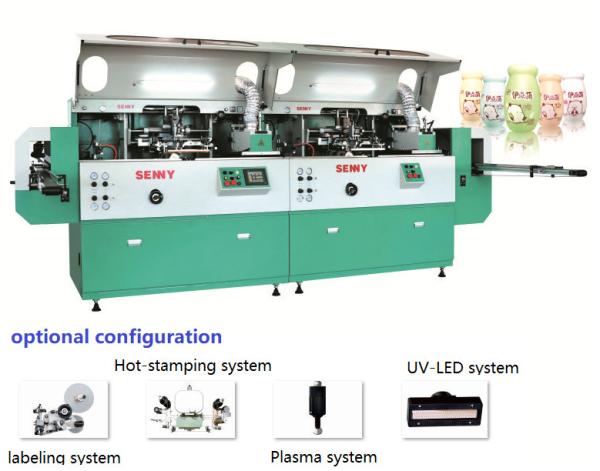

The automatic screen printing system machine SL1266 is suitable for cylindrical shapes only, while the other machine SL1288 (1-12 colors) can be designed for cylindrical, oval and flat surfaces, so you are free to choose according to your needs. Both machines can be equipped with hot stamping systems, labeling systems, plasma systems or UV-LED systems.
Technical Specifications:
| Model | SL1266 |
| Bottle or Jar's shape | Cylindrical |
| Cylindrical container diameter | Φ20 - Φ100mm |
| Container height | 50 - 280mm |
| Max. printing area | L250 x W200mm |
| Max. printing speed | Up to 5000pcs/hr |
SAFE EFFIENCY INNOVATIVE
* SL1266 servo-driven automatic machine for screen printing of plastic or glass containers, only for cylindrical (round) bottles or jars.
* Linear unit structure combination: up to 12 inline colors are optional.
* Machine operated by PLC and touch screen for easy operation with excellent alarm system.
* Feeding components include: feeding belt and robot hand for side selection.
* Machine side selector mainframe is driven by servo motor and rotates for dusting and flaming of round containers.
* Flame treatment for round, oval and rectangular containers.
* Pre-positioning device
* Secondary positioning device for printing.
* Electronic lifting device for squeegees
* UV curing by stepper motor-driven rotation of round containers.
* Electronic UV system: Device for freely adjustable light (alternative to LED UV curing systems).
* Output components: Manipulator for standing up containers and belts.
* CE compliant.
